Audio DSP and converters:
32-BIT floating point Analog Devices Sharc (Clock speed: 266MHz) Digital Signal Processing chip and Wolfson A/D D/A converters working in PCM at 48kHz with 24 Bit resolution. Tuning functions can be heard in real time due to processing speed.
8 independent high-level channels (with automatic summing capability) or 6 independent
analog low-level channels
2 analog low-level stereo auxiliary inputs
1 optical digital input
1 electric coaxial digital input
1 high-level momentary audio interrupt input (with Mute IN) for use with mobile phone or
8 independent low-level analog channels featuring adjustable level and 1 AD Link output
(8 independent digital audio channels through a single CAT 5.S LAN cable for use with
AD Link provided amplifiers)
Digital Control System :
1 USB /B (2.0) connector for PC connection
2 AC Link control bus connectors for DRC and AC Link amplifiers.
Guided procedure that, thanks to a wide range of set names, provides the ability to assign
each component to the Bit One connections and automatically coordinate their functioning.
ART automatic remote turn on/off circuit.
Through the car ignition key with memory function.
Through the DRC.
Automatically through the hands-free phone kit.

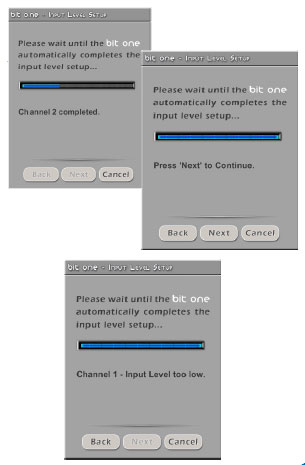

Input sensitivity automatically adjusted for the main inputs (with supplied Test CD and DVD)
Manual input sensitivity adjustment for auxiliary inputs

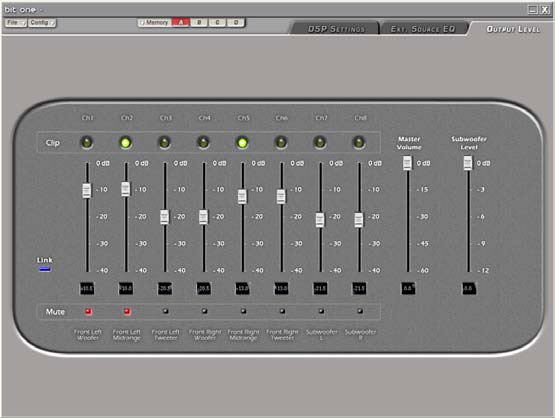

Independent level control for each output channel for system fine tuning (-40 to 0 dB).

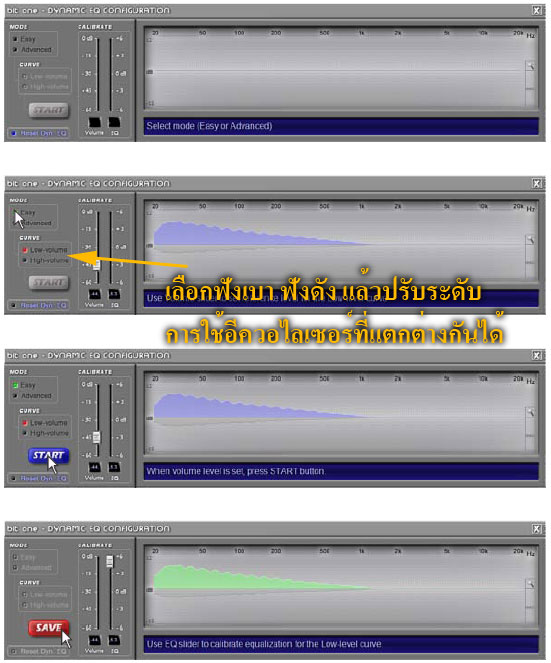

System automatically self-adjusts through an equalization between low and high listening levels that can be set by the user and controlled by the DRC.

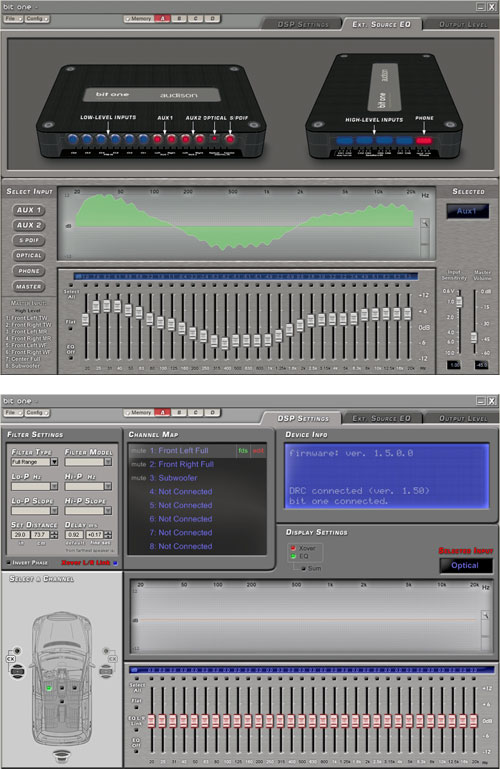

One 31-band graphic equalizer (1/3Oct.: +/-12dB) for each one of the 4 auxiliary input
One 31-band graphic equalizer (1/3Oct.: +/-12dB) for each one of the 8 output channels.

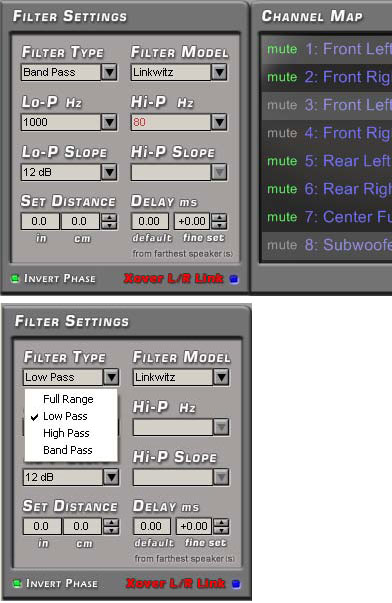

Filter typology: Selectable: Hi-pass, Lo-pass, Bandpass, Full Range
Cut-off frequency: 70 steps available from 10Hz to 20kHz
Cut-off slope: Selectable: 6 to 48 dB/Oct.
Alignments: Selectable: Linkwitz or Butterworth
Mute: Selectable for each output (On/Off)
Phase: Selectable for each output (0/180)
Signal channels reconstruction:
It can reconstruct a stereo signal from a multi-channel signal. In addition it can reconstruct a centre channel and subwoofer channels from a stereo input alone

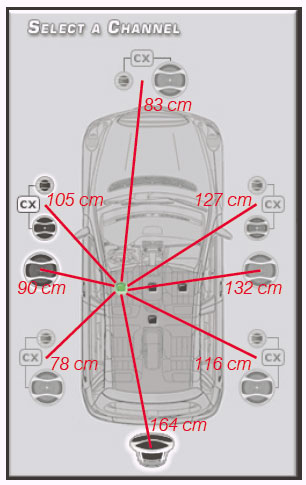

Guided procedure for the speaker distance data entry with an automated
calculation of proper delay times for each channel for accurate time alignment set-up.
System also provides for manual fine tuning of delay (0-22 ms max).
Automatic turn Off/On, if the DSP locks up.
Master Volume control, Subwoofer Volume control, Balance control, Fader control, Input
selection, Memory selection, Dynamic Equalizer On/Off, Adjustable display brightness,
Access to digital features of Audison TH amps if connected.
4 presets separately managed and recalled by the DRC Remote Control.

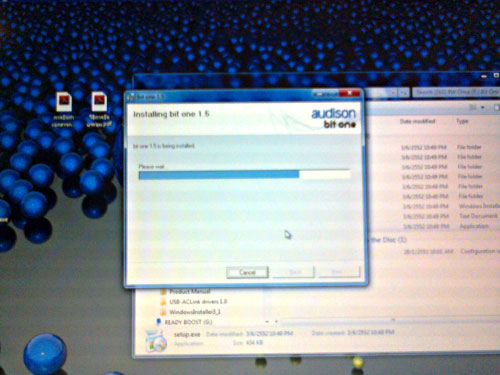

Bit One software:
Microsoft Windows (Win 2000, XP, Vista) based software with ''Standard'' and ''Expert''
